INNOVA MATIC NSPO 800

INNOVA MATIC NSPO

Non-Stop Dual Turret Slitter

INNOVA MATIC is Dual Turret Slitter Rewinder with full automatic reel exchange and over-head web path and thanks to a separate vertical shaft-less un-winder connected to the mainframe through a bridge allowing a over-head web path, a highly appreciated feature where the highest hygienic standards are required, like the pharmaceutical and the food industry.
INNOVA MATIC is designed to be a worker friendly and convenient slitter, able to reduce downtime (material and knives positioning) and keep low the ownership costs over the time. Thanks to the strong steel structure and innovative "pre-balance system" the slitter guarantee vibration-free process at high speeds with heavy rolls.

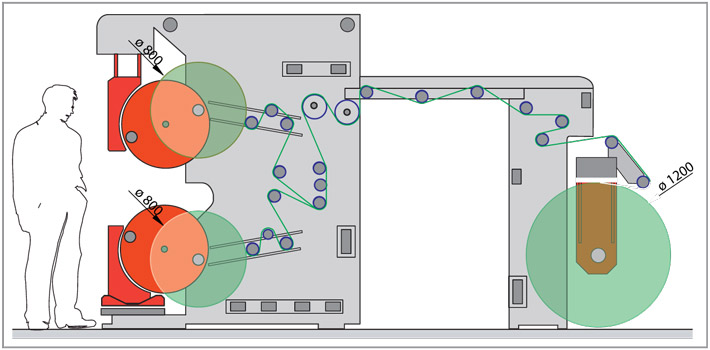

Innova Matic Diagram

Techical Features

Mother roll ø (max)      1000 - 1200 mm
Mother rolls width (max)     1000 - 1300 - 1600 mm
Slit rolls ø (max)     600 - 800 mm
Maximum speed     700 m/min
Finished roll width (min)     > 20 mm
