Center Duplex Aluminium

Center Duplex Aluminium

Dedicated to Aluminium Foil

This is the evolution of the central drum "Center Duplex" but dedicated to process aluminum foils. The model takes the innovative advantage of "central drum roll" layout allows to rewind wide range of materials in narrow bands (from 10mm) up to 800 mm diameter, keeping high speeds and stability managed by total hydraulic system. This machine is developed for manufacturers and converters with customers in the aluminium industry in the sectors of pharmaceutical, electronics and food markets and wherever there is a need to produce narrow bands with high diameters and high rewinding accuracy.

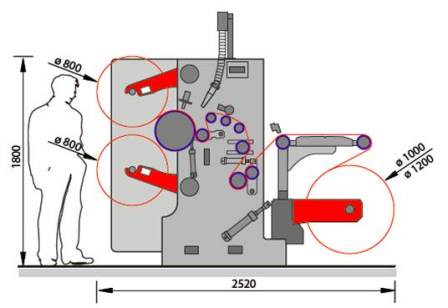

Center Duplex Aluminium Diagram

Techical Features
Mother roll ø (max)      1000 - 1200 mm
Mother rolls width (max)     1000 - 1300 - 1600 mm
Slit rolls ø (max)     800 mm
Material     Aluminium Foil
Material Thickness      ≥10 μ
Maximum speed     500 m/min
Finished roll width (min)     > 10 mm
